Our highly experienced and professional engineering teams are ready to offer new product designs and/or create customized solutions to meet specific application requirements in the shortest possible time.

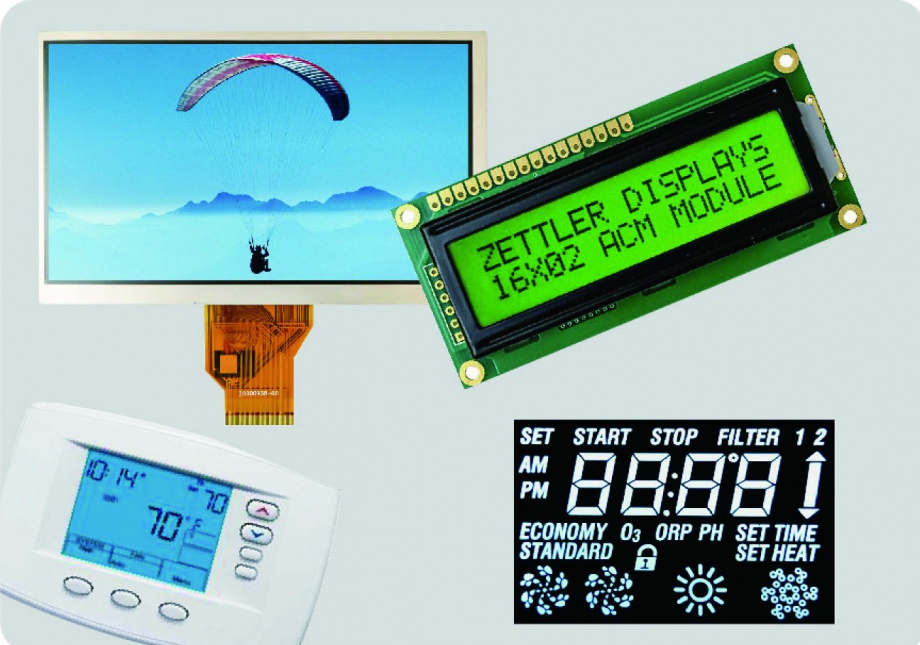

ZETTLER DISPLAYS custom designs and produces display products of :

Custom Design TFT

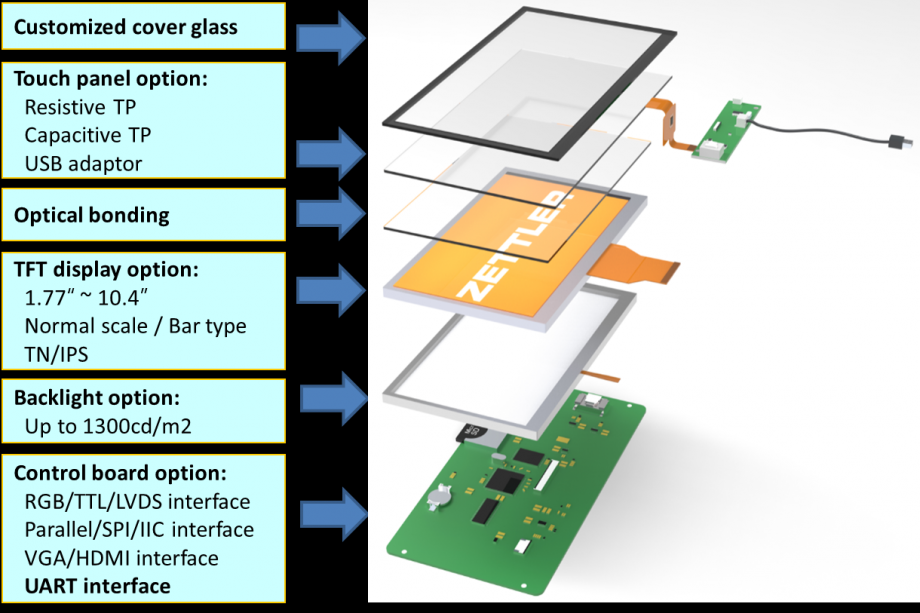

• Based on the standard TFT module, we can further provide customized solution for FPC/ backlight/ touch panel/cover glass /silk print /interface and PCBA servicetouch screen can be customized to meet the requirements ofcustomer specific product structure and photoelectric performance requirements. And we can also prov.

Custom Design LCD

• Low cost - Price of custom LCD  is cheaper than TFT solution.

• Flexible dimensions -The size range for custom LCD is more flexible, with diagonal dimensions ranging from 1.5 "to 10".

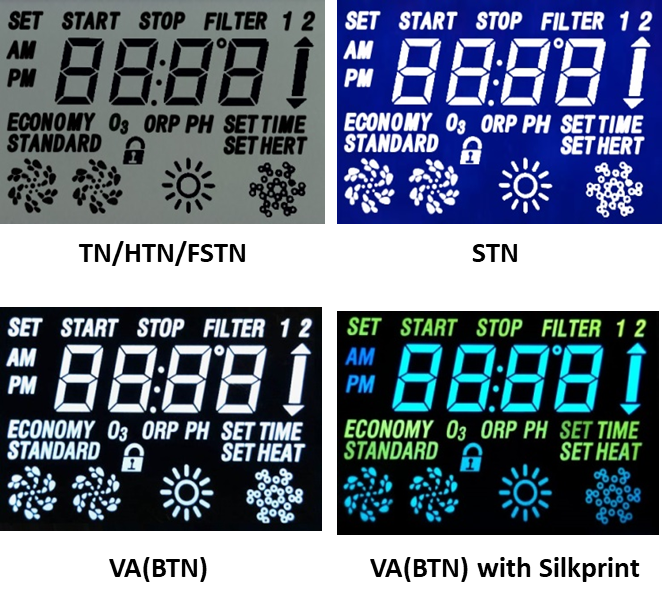

• Display type option - Different display types are available, such as TN,HTN,STN,FSTN and VA(BTN) .

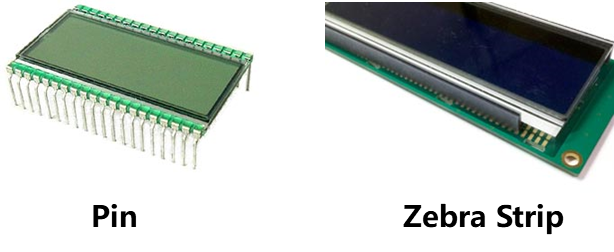

• Connection mode - PIN or zebra strip (conductive adhesive strip)

• Quick mold opening -- After the customer provides the demand to us, the solution can be provided to the customer within 1~2 days. After the customer confirms the drawing, the sample product can be finished within 4 weeks.

  1. Provide design drawings for 1-2 days

2. Samples ~ 4-5 weeks

3. Batch production cycle ~ 8-10 weeks

4. The total time is ~ 12-15 weeks

Backlights

• Side-lit and bottom-lit design available

• SMT and DIP LEDs available

• White/blue/red Single color available (other colors as option per requirement)

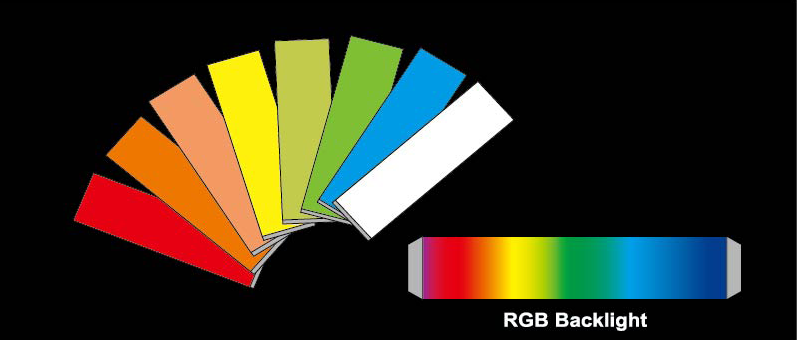

• Multi-color backlight available

• Customized light guide shape available

Other customized products

• In addition to custom LCD and backlight and standard monochrome module, COB/COG type segment code/character/graphics monochrome liquid crystal module can also be customized.

• Custom design of serial interface TFT module for different sizes and connections

• Based on the High Contrast Graphics Modules,  customized PCBA is available to meet different interface requirements.

• Customized LED display module.
